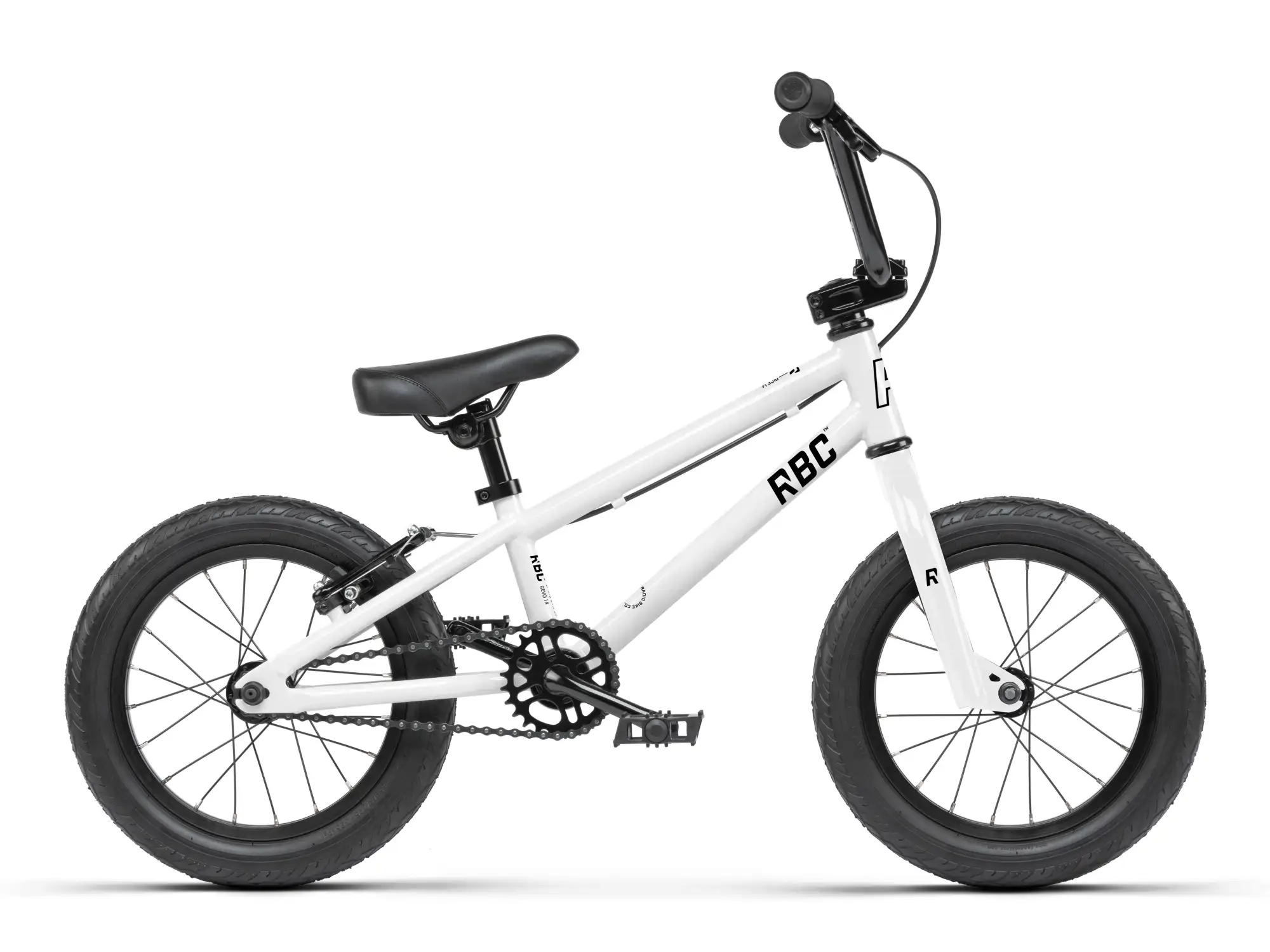

The Radio Revo 14" is a lightweight kids BMX bike built to make first pump tracks, turns and freestyle basics feel easier from day one

BMX bike – key features:

• Rider height: around 95–115 cm
• Frame TT: 13.7"
• Wheels: 14" x 2.0"
• Crank: 1-piece Cr-Mo 102 mm
• Weight: 8.83 kg
• Level: beginner

A small BMX that helps build confidence faster

The Radio Revo 14" was designed to make first rides feel easier and more natural. The lightweight build and compact frame help younger riders find balance quicker and feel more comfortable while turning or pumping through smaller transitions.

The short 10.55" rear end gives the bike a more responsive feel. It becomes easier to lift the front wheel and react quicker with the handlebars during first manuals or early skatepark sessions.

A 72° head tube angle keeps the handling calmer and more predictable at lower speeds. The bike never feels twitchy, which helps keep the focus on learning basics instead of constantly fighting the setup.

Radio also paid attention to the smaller details that matter at this stage. The rear V-brake feels light and easy to control, while the slimmer tubing helps keep the overall weight lower. That makes the bike easier to handle during longer rides and less tiring for younger riders.

Riding safety

BMX bikes are built for active riding, but tricks, jumps and hard landings can loosen or damage components. Check your bike before every ride and do not ride it if you notice any loose or damaged parts.

Wear suitable protective gear when riding. For more information, read Important Information Before Buying and Riding a BMX Bike.

BMX bike – detailed technical specification:

Frame (geometry diagram below):

• Radio Revo 14
• Full 1020 Hi-Ten
• TT: 13.7"
• CS: 10.55"
• HA: 72°
• SA: 73°
• BB: 7.5"
• SO: 5.5"

Fork:

• Radio Rookie 14
• 1020 Hi-Ten
• Tapered fork legs

Handlebar:

• Radio Revo 14 Bar
• Hi-Ten
• Rise: 6.5"
• Width: 22.4"
• Backsweep: 8°
• Upsweep: 2.5°

Grips:

• Radio Junior
• Flangeless
• 110 mm

Stem:

• Salt Junior Topload
• Reach: 40 mm

Headset:

• FSA A-Headset
• Loose Ball

Brakes:

• Lever: Radio Junior Alloy
• Front: Radio AM Caliper Brake
• Rear: Radio AM-V V-Brake

Crank:

• Radio Rookie
• 1-piece
• Forged Cr-Mo
• 102 mm

Bottom Bracket:

• Radio US BB
• Loose Ball

Pedals:

• Radio Junior
• Nylon

Chain:

• KMC S1

Sprocket:

• Radio Rookie
• Steel
• 25T

Driver:

• 9T Cassette

Wheels:

• Salt AM Rims
• Single Wall
• 20H

Front Hub:

• Radio Rookie Steel Hub
• 20H
• Loose Ball

Rear Hub:

• Radio Rookie Steel Hub
• 20H
• Loose Ball
• 9T Cassette

Tyres:

• Radio Rookie
• 14" x 2.0"

Seat:

• Radio Century
• Railed Seat

Seatpost:

• Radio AM Alloy
• 250 mm

Seat Clamp:

• Radio Slim Alloy

Weight:

• 8.825 kg

Important information about your new BMX

• Read the warranty terms supplied with the bike carefully before your first ride.
• Bikes ordered online are delivered approximately 90% assembled for shipping.
• Fit the pedals and handlebars before your first ride. Some models also require the front wheel to be fitted. Follow the assembly instructions supplied with your bike.
• An initial inspection at a professional bike workshop is required to keep the warranty valid. This is a paid service; the cost depends on the workshop. Keep the receipt for the bike inspection.
